PRODUCT
Material: stainless steel；Carbon Steel
Finish: plain；Zinc plated
Certification: ISO9001
MOQ:1000PCS
Samples: Free
Place of Origin: Zhejiang China
Product Details
Lock Nut

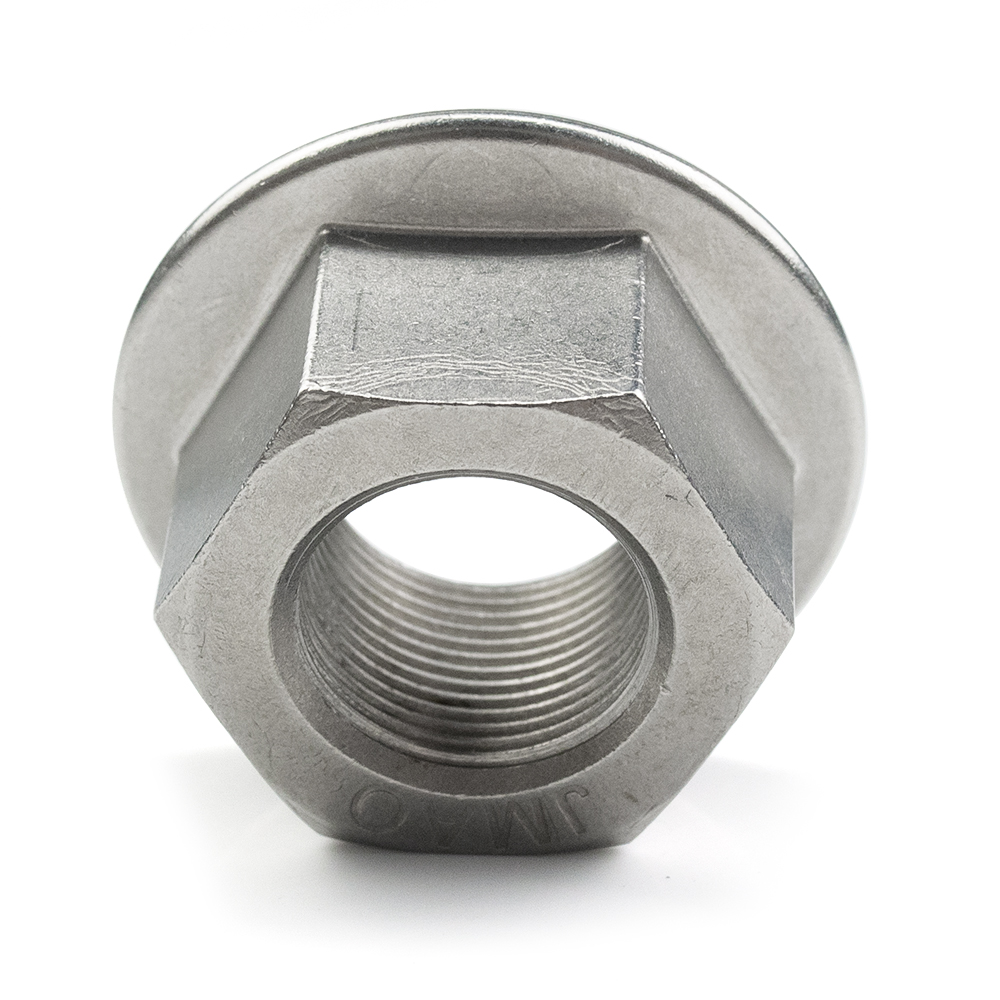

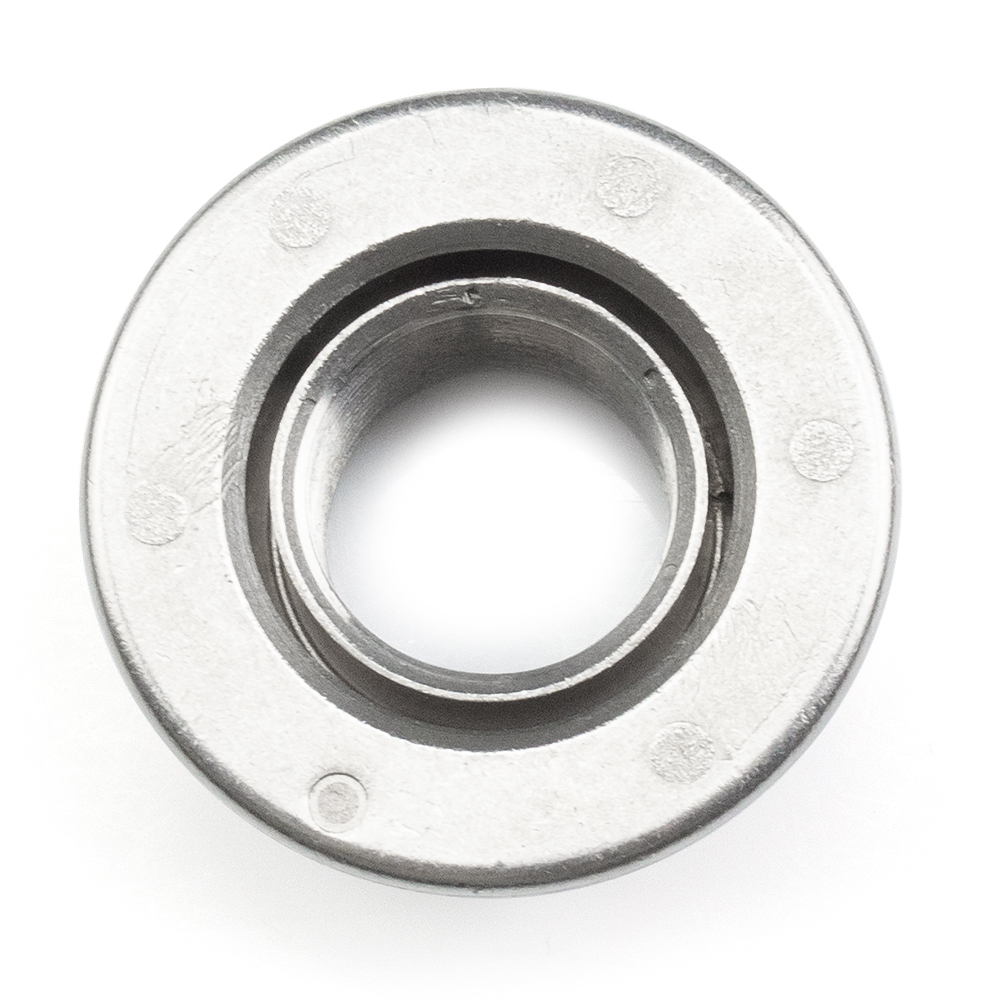

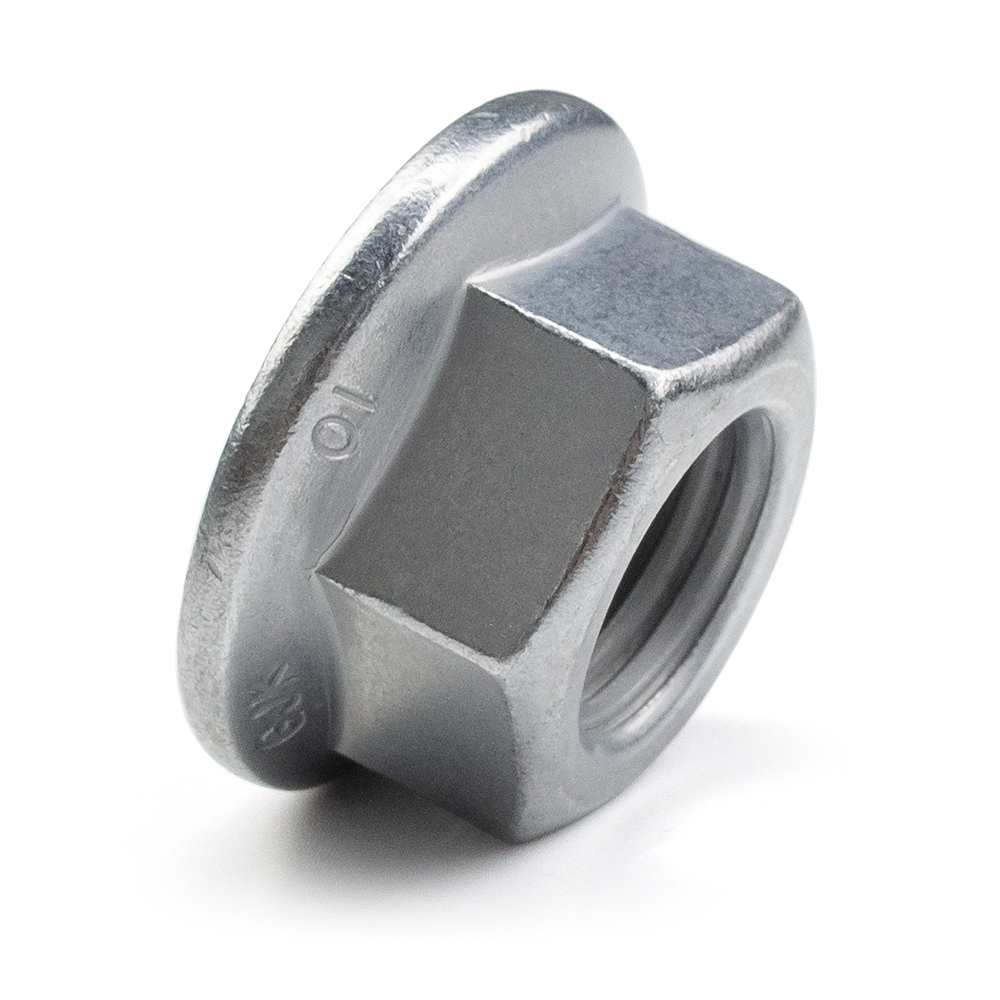

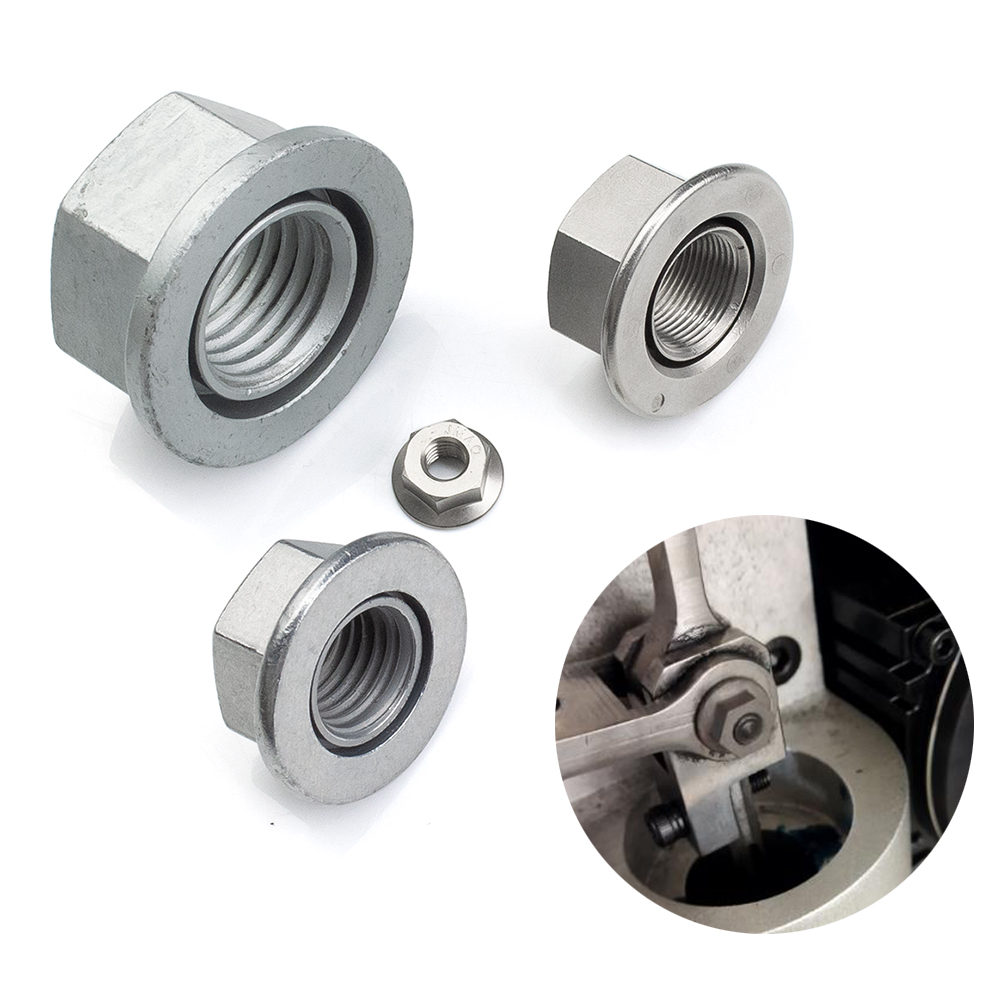

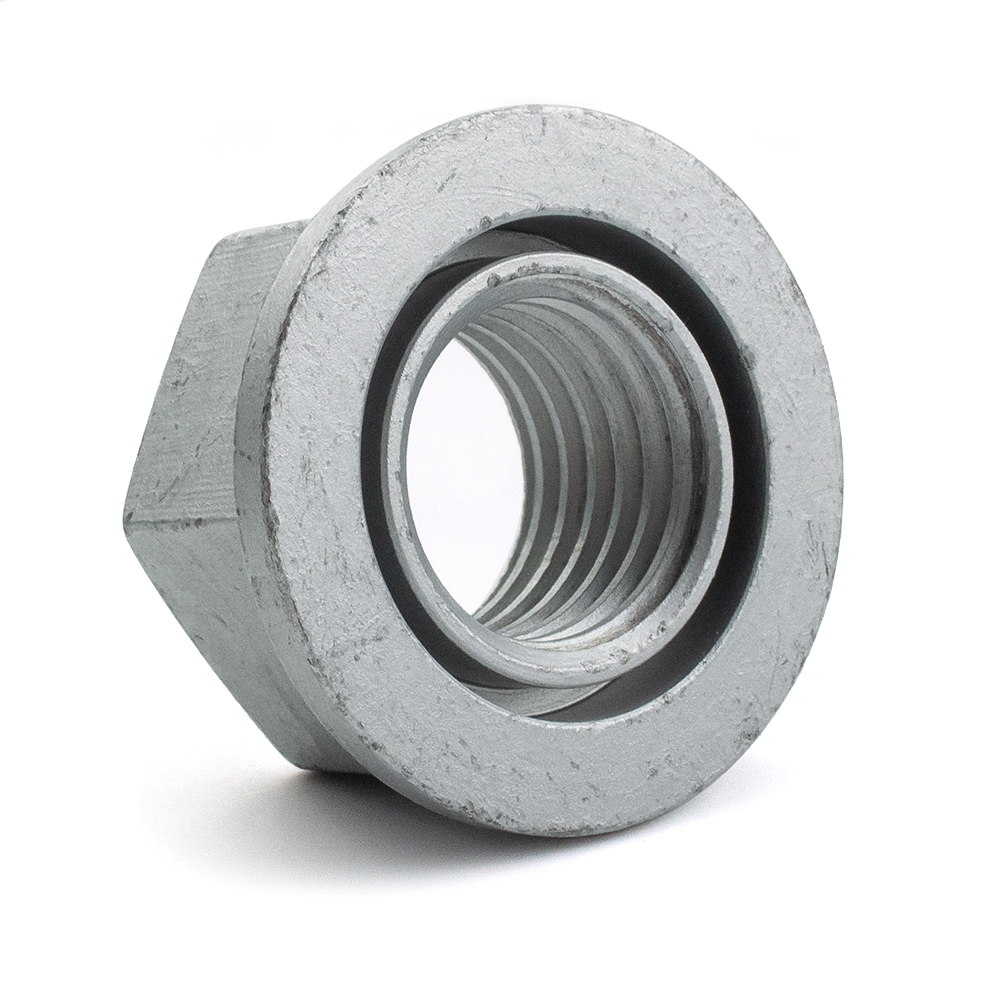

Jinmao brand U-shaped lock nut
The U-shaped structure anti loosening principal technology has obtained a national invention patent with patent number ZL 2021 1 0487670.0.
We transfer the position of the vibration force by changing the structure of the nut, transmitting the vibration force to the top of the nut, forming a centripetal tightening force, achieving the best anti loosening effect, and creatively achieving:
One nut can prevent loosening
Repeated installation and never loosening
The vibration stronger, the grip tighter
Specification
|
Product name
|
Lock Nut |
|
Finish
|
plain |
|
Measurement system
|
Metric, Imperial (Inch)
|
|
Application
|
Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Automotive Industry
|
|
Brand Name
|
Goshen
|
|
Standard
|
DIN,ANSI
|
|
MOQ
|
1000 Pcs
|
|
Material
|
Stainless steel
|
|
Grade
|
A2-70,A4-80 ect
|
|
Service
|
Customized OEM
|
|
Size
|
M2-M48
|
| 304 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8.0-10.5 | 0.1 | |
| 304 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200 |
Standard export packing or According to customer's requirement
A: Our main products are Bolts,Nuts,Screw ,Threaded rod ,Washer and other mechanical parts.
Q2. What is your MOQ?
A:Usually the MOQ for hex nut is 1000pcs.
Q3. Do you accept DEM & ODM?
A: Of course ! We support OEM & ODM! We can make the products according to customers' design and specifications. Our company is experienced in making Hex nut and has already provide this service to many customers around the world.
Q4. Can you provide a sample?
A:Sure,Our sample is provided free of charge, but not including express charge .
Q5. How long is your delivery time?
A: For OEM or ODM products, it takes 30 to 45 days . For standard products, it take 7 to 15 days
-
Vibration-Proof Locking
The U-shaped bridge deforms elastically when tightened, creating a constant prevailing torque that prevents loosening under shock or vibration. -
Material Excellence
Manufactured from AISI 304/316 stainless steel, ensuring superior corrosion resistance for marine, chemical, and outdoor environments. -
Reusable & Tool-Free
Unlike nylon-insert lock nuts, the all-metal design withstands repeated assembly/disassembly without loss of locking performance. -
Jinmao Brand Assurance
Produced in ISO 9001-certified facilities with full batch traceability and 100% thread gauging; each nut is laser-marked with the Jinmao logo for authenticity. -
Wide Temperature Range
Performs from -80 °C to +300 °C, making it ideal for high-heat exhaust systems or cryogenic piping.
-
Thread Size: M6 – M24 (UNC/UNF available)
-
Height: Standard DIN 985 height plus U-bridge
-
Hardness: ≥ 200 HV
-
Finish: Passivated or polished mirror finish
-
Proof Load: ≥ 500 MPa (grade A2-70 / A4-80)
-
Rail & Transport: Bogie suspension, rail fastening, truck chassis
-
Renewable Energy: Wind-turbine nacelle bolts, solar-tracker joints
-
Marine Hardware: Dock cleats, mast fittings, propeller shaft couplings
-
Heavy Machinery: Vibrating screens, crusher frames, concrete pumps
-
Infrastructure: Expansion-joint rails, bridge bearings, stadium seating
