1. Core material characteristics
The main material is 304 stainless steel sheet, with excellent toughness and strong plasticity. It is not prone to cracking during bending and stretching processing; it has inherent anti-rust and anti-oxidation properties, is non-magnetic, and does not interfere with the signals of precision electronic components; its thermal and electrical conductivity is balanced, and it can be used as a conductive contact spring.

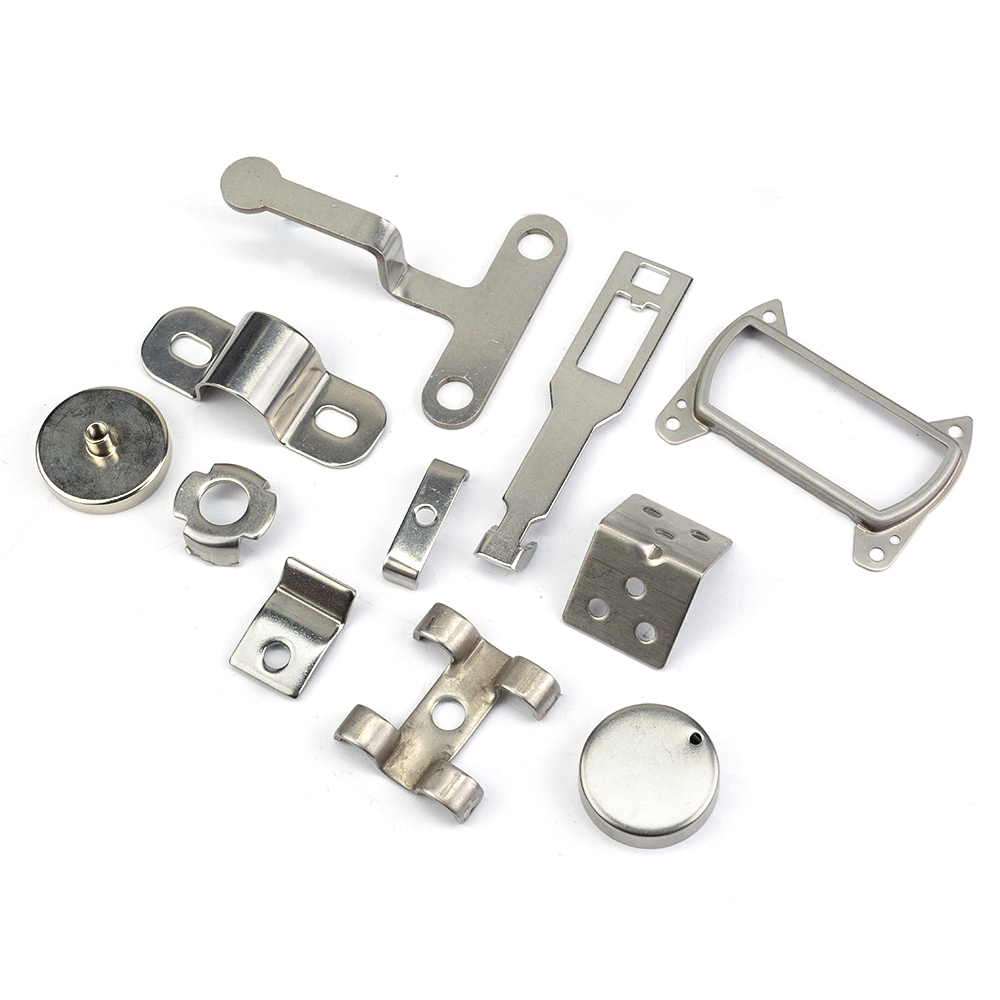

2. Detailed category process structure characteristics
U-shaped / single-edge folded snap-in bracket
Two-sided bending limit structure, center reserved installation and fixation holes, standard arc of the snap-in, firm and not loose; mostly used for fixing and limiting the positioning of plates, shells, and circuit boards, and the ultra-thin model is suitable for small installation spaces.
L-shaped multi-hole angle bracket
Multiple punching holes distributed, 90° right-angle structure of bending, strong supporting and bearing capacity, can be used for chassis, equipment shells, cabinet assembly fixation, and multi-sized hole positions are suitable for different screw assemblies.
Irregularly bent elastic snap-plate
Multiple continuous bending formed, with stable elastic rebound, can be used as conductive contacts, pressing snap-in, limit snap-plate, with uniform elasticity, and does not fail easily after long-term repeated use.

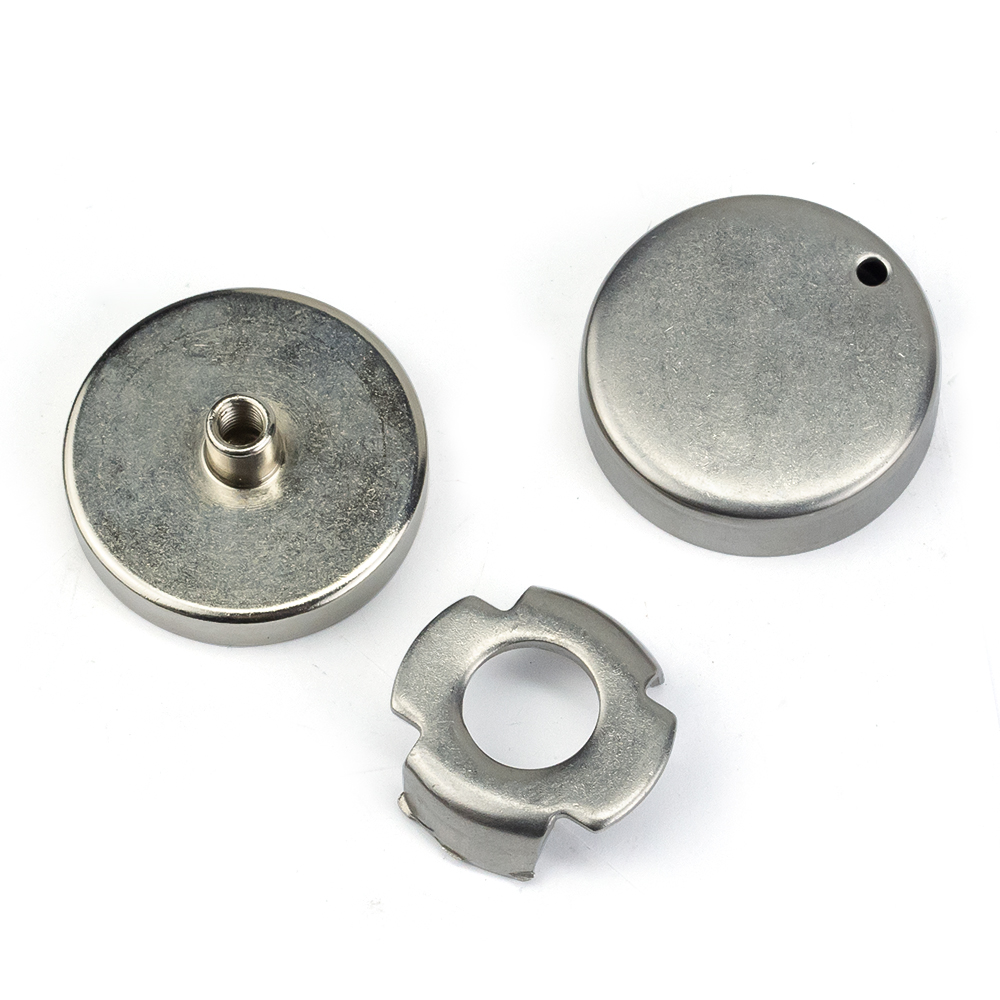

Circular stretching base / cover part
Deep stretching integrated molding, side edges can be processed with installation holes, built-in threaded columns, flat circular base used for equipment base counterweight, shell cover, mounting base, with uniform force and not prone to tilting.

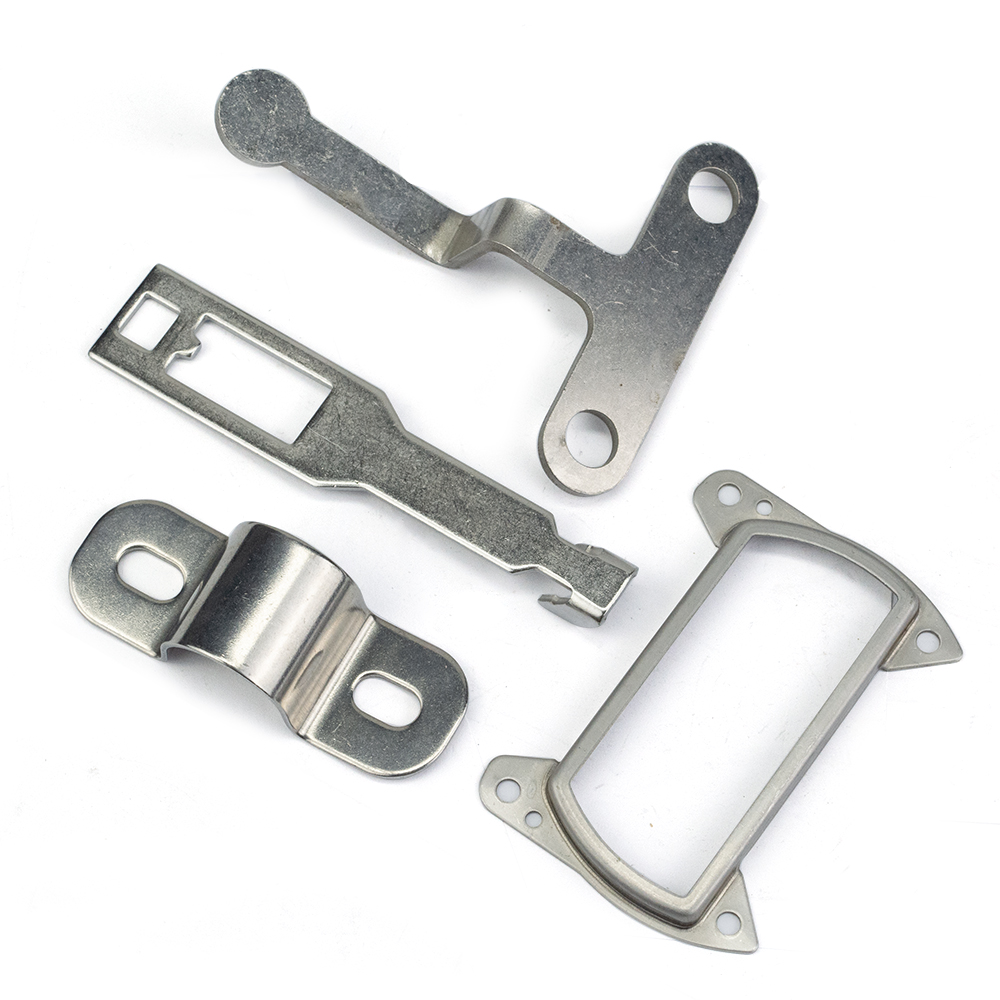

Irregular connection arm / frame sheet metal part
Irregularly hollowed-out, double-hole positioning bending structure, suitable for equipment connecting rods, instrument frames, door lock fixing brackets, the hollow design reduces the overall weight and does not affect the structural strength.

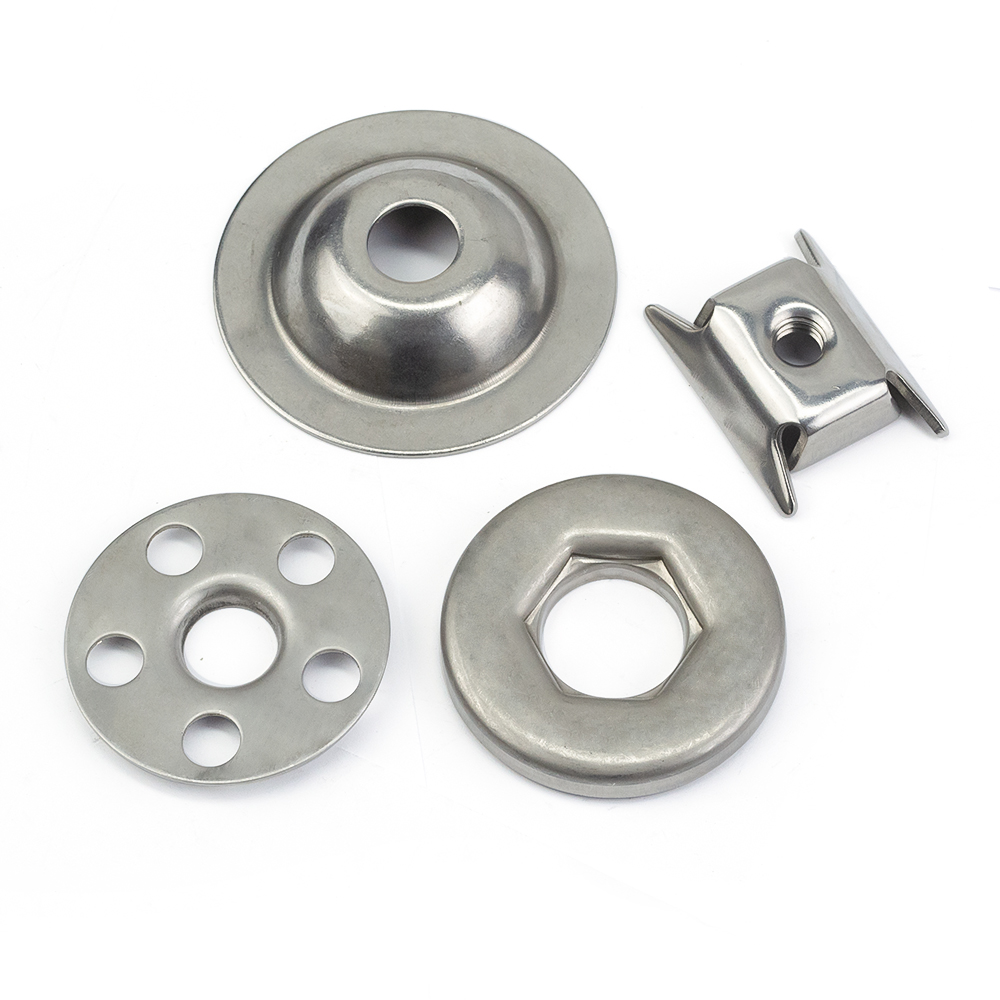

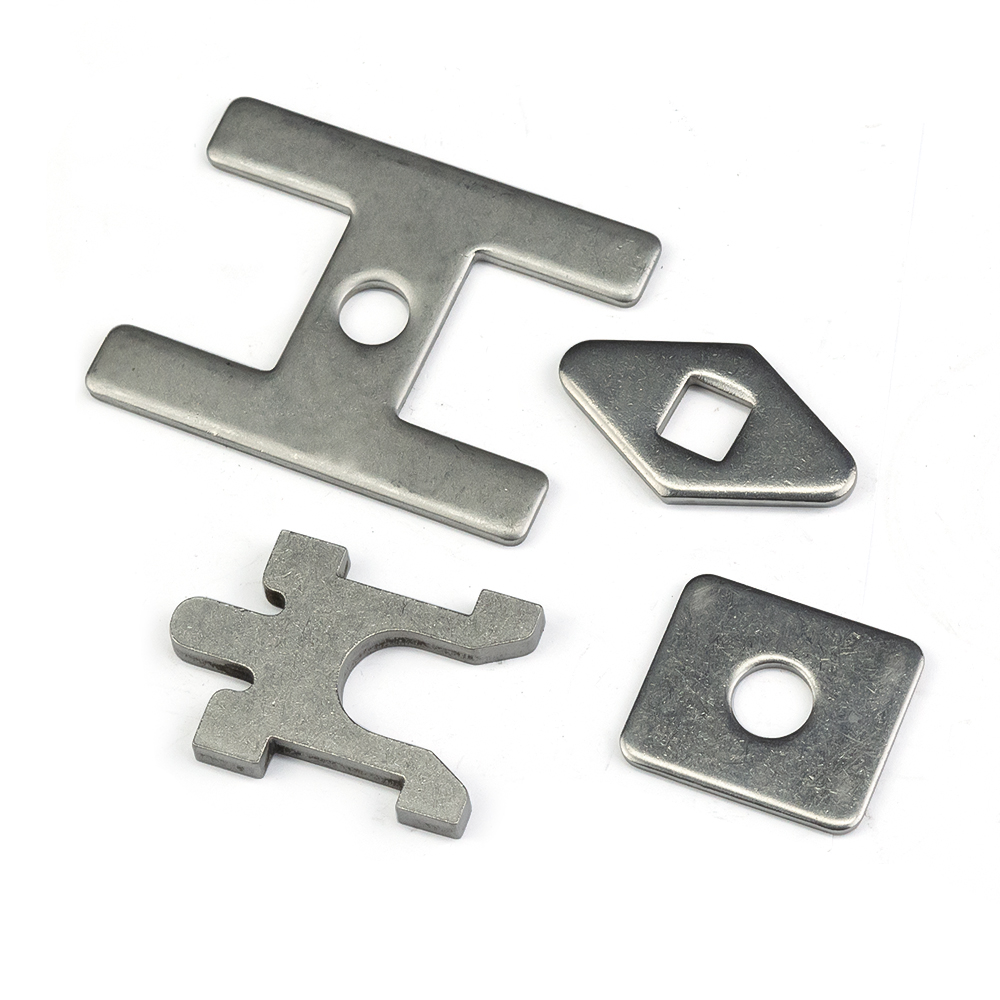

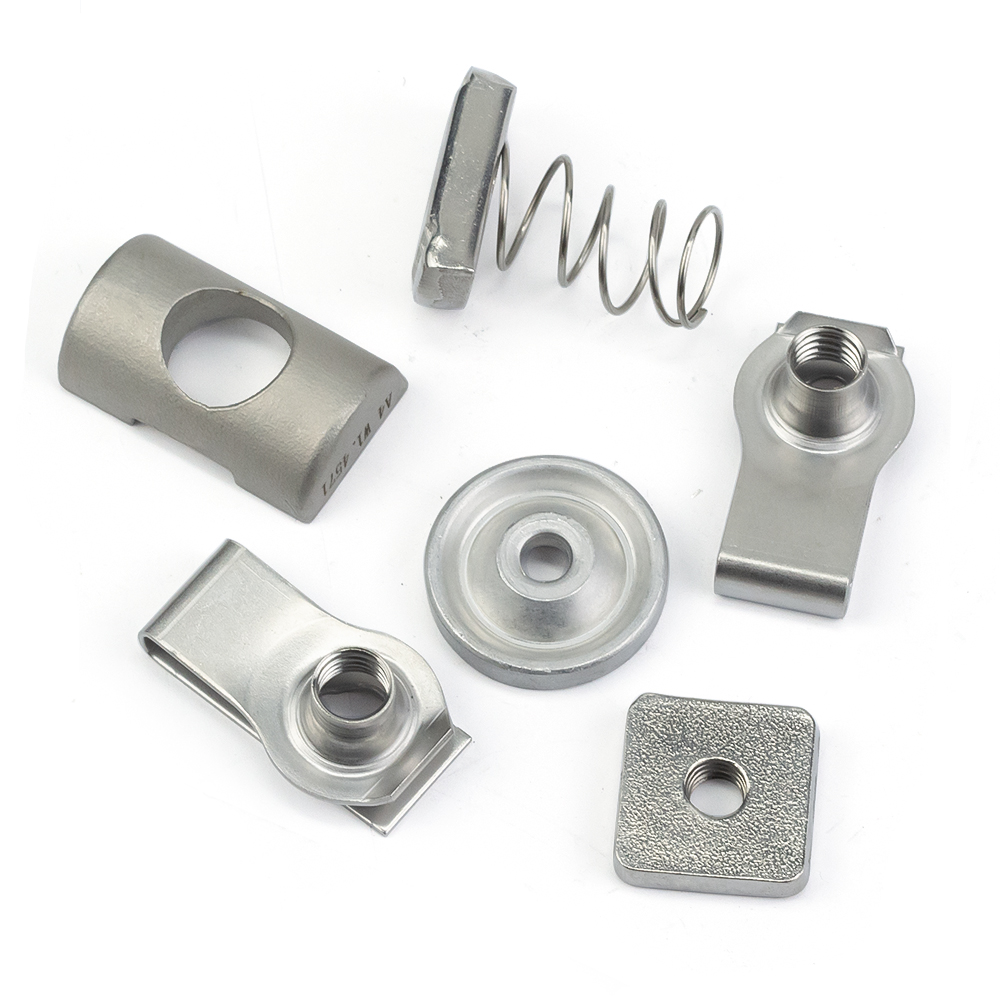

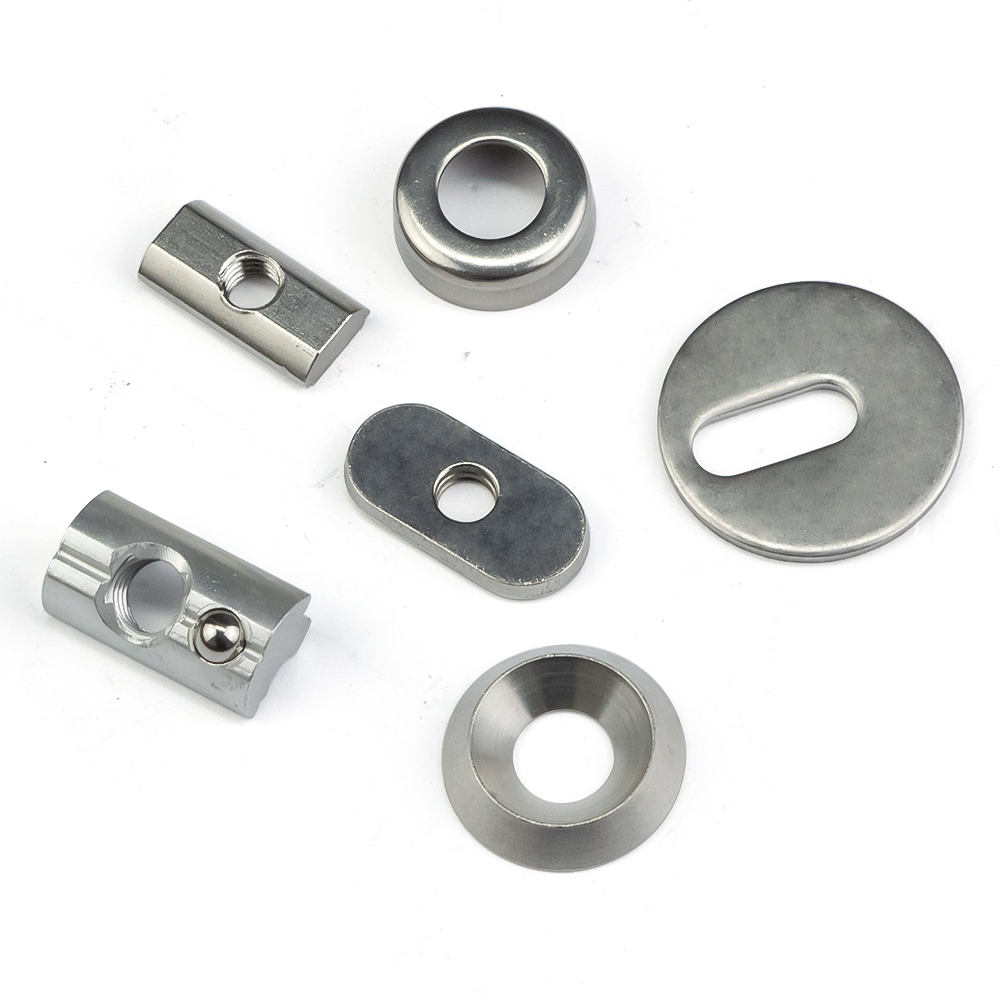

Various stamping pads, lock washers, springs
Square / circular / irregular-shaped pads, open clamps, stamping springs, with complete thickness, used for gap isolation, anti-loosening limiting, buffering and vibration reduction, and used in combination with brackets.
3. General process physical characteristics
The thickness of the sheet material can be selected from 0.3mm to 3.0mm, meeting the different requirements of lightweight elastic parts and heavy-load supporting parts;
All cuts and edges are polished and deburred, assembly has no sharp edges;
Standard metric installation holes, compatible with common market screws, strong interchangeability;
Silk-textured matte finish, can be customized for polishing and degreasing processing, to enhance salt spray resistance performance.

304 stainless steel substrate, long-lasting rust prevention and corrosion resistance
The product is made of original factory 304 stainless steel cold-rolled sheet, which is formed by one-piece stamping without coating. There is no problem of electroplating layer peeling or rusting; it is resistant to moisture, salt spray, and mild acid and alkali erosion. It can be used for a long time in kitchens, outdoors, and humid workshops without oxidation or rust perforation, and its service life is much longer than cold-rolled iron stamping parts.
One-piece stamping formation, stable structural strength
The entire set of accessories is formed by one-time stamping and bending, without splicing or weak points from welding, with excellent load-bearing and anti-bending performance; the rebound force of the spring-clip products is uniform, and they are not prone to fatigue fracture after tens of thousands of opening and closing times, and the card-clip brackets are not prone to deformation or cracking under force.
High-precision CNC stamping, controllable size tolerance
The product is processed by CNC die cutting and precise bending molds, with uniform punching, bending, and stretching dimensions, high concentricity of hole positions, strong interchangeability of batch products; the edges are precisely deburred, and the assembly process does not scratch the workpiece, cables, and shells.
Full range of structural coverage, one-stop customized supply
It covers fixed brackets, elastic clips, positioning pads, stretching bases, special connecting arms, conductive spring clips, spring accessories, etc., with hundreds of types of structures. One order can provide all the stamping hardware needed for the complete machine, eliminating the cumbersome process of multiple supplier connections and batch purchases, and reducing procurement and storage costs.
Flexible customization, suitable for various special working conditions
The thickness of the sheet, bending angle, hole opening style, spring-clip elasticity, card-clip slots, stretching depth can be adjusted according to customer needs; special structures such as blind holes, long waist holes, positioning protrusions, conductive contacts can be added. Small batch prototyping and large batch production can be undertaken.
Surface is treated with original wire drawing processing, suitable for various assembly environments
The finished products are uniformly treated with wire drawing matte finish, which is not prone to fingerprint and water stains, has high cleanliness; there are no oil stains or burrs, and there is no risk of metal impurities contamination in food, medical, and electronic equipment assembly.

1. Automated equipment and industrial control chassis
Assembly clamps for the production line, L-shaped fixing angle brackets for the chassis, conductive tabs for circuit boards, stretching discs for the equipment base, stainless steel for preventing rust in the workshop and damp and humid environments, ensuring the repeat positioning accuracy of the workpieces with precise dimensions.
2. Household appliances and kitchen/sanitary equipment
Water purifier clamp brackets, small appliance shell fixing tabs, kitchen/sanitary storage rack connection tabs, water heater sealing gaskets, long-term use in damp and water environments does not rust, and does not cause rust stains to contaminate the products.
3. New energy lithium batteries, charging equipment
Battery shell limit tabs, charging station fixing brackets, conductive contact tabs, non-magnetic stainless steel does not interfere with circuit signals, elastic structure ensures stable conductivity, higher safety.
4. Precision instruments and testing equipment
Special-shaped connection brackets for the instruments, base counterweight discs, limit pins, polished clean surface without impurities, does not contaminate the testing samples, thin sheet metal does not increase the equipment's own weight.
5. Outdoor photovoltaic, lighting equipment
Lamp fixing clamps, photovoltaic panel connection brackets, outdoor advertising board padding, resistant to rain and salt spray corrosion, long-term use in outdoor conditions is not prone to breakage or rusting.
6. Medical, food processing equipment
Medical equipment fixing sheet metal, assembly clamps for the food production line, 304 material meets the clean contact standards, resistant to high-temperature washing and disinfection, no harmful substances are released.
7. Hardware furniture, door and window accessories
Door cabinet splicing angle brackets, door and window limit tabs, storage rack fixing clamps, integrated stamping structure with stable load-bearing capacity, easy to disassemble without deformation.
